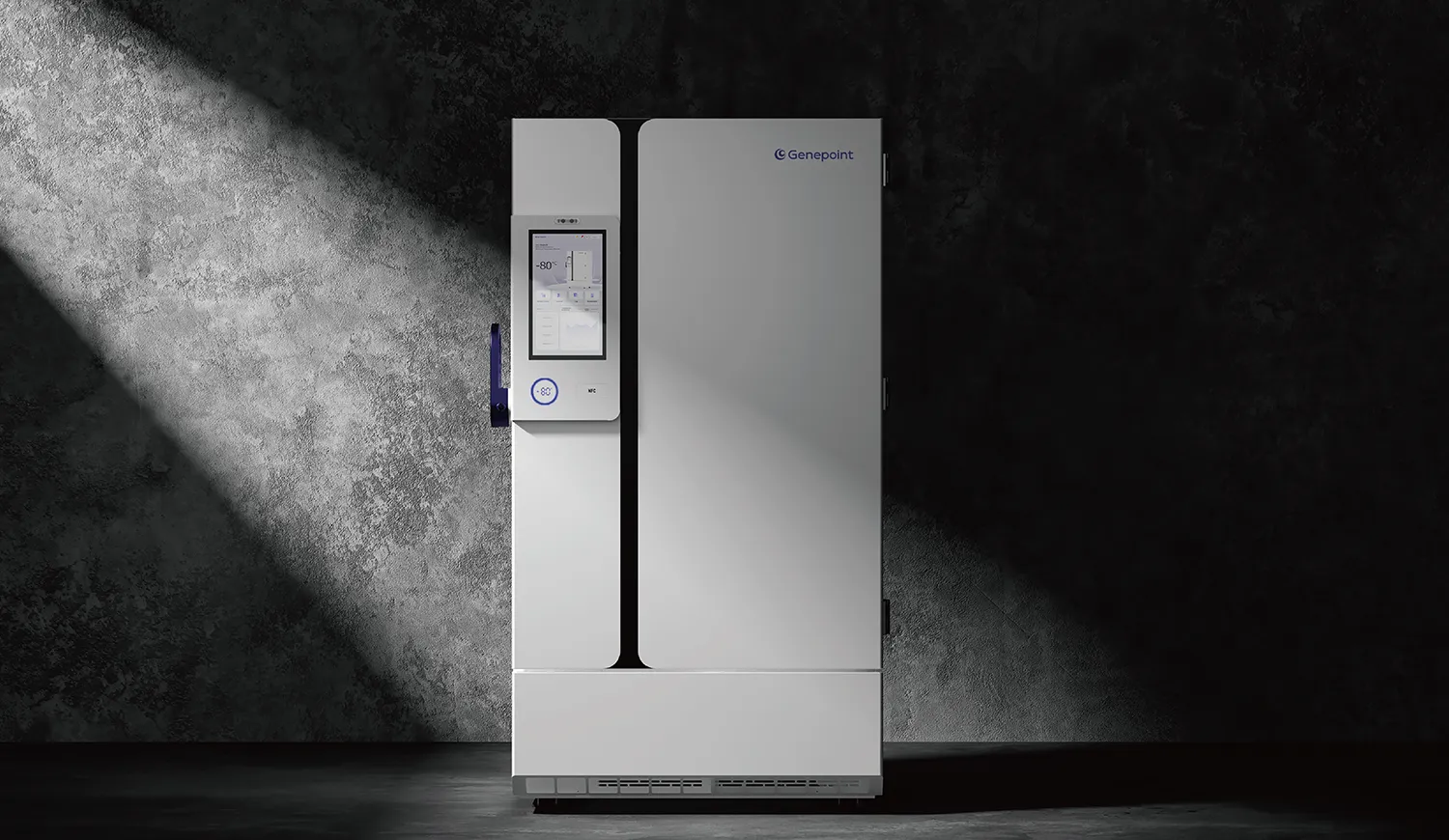

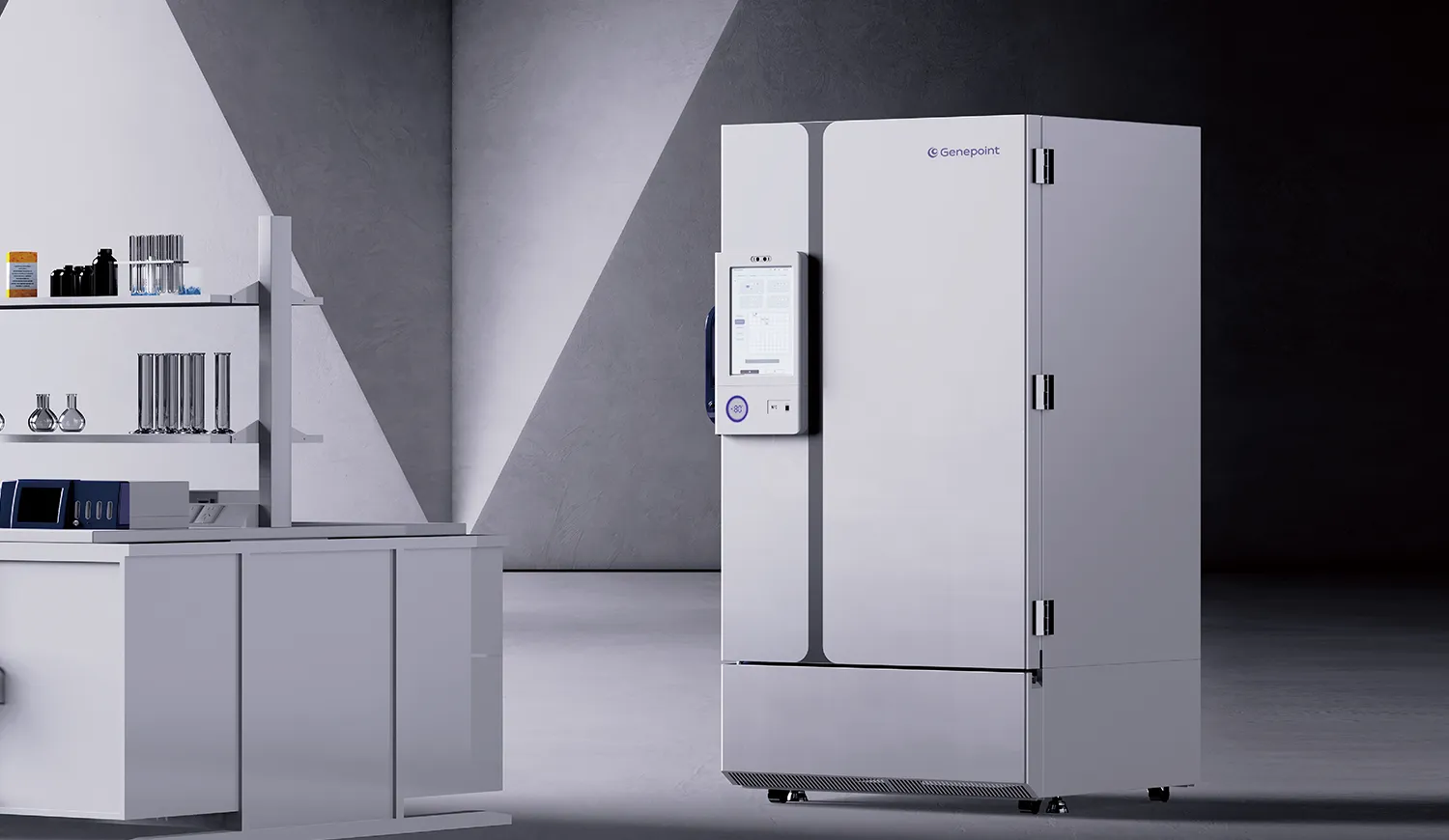

Samplock is an ultra-low temperature freezer designed to simplify biospecimen storage and daily laboratory workflows. Combining reliable -80°C performance with digital sample management, intuitive navigation, and real-time status monitoring, it helps laboratories improve storage efficiency, accelerate sample retrieval, and enhance data traceability while protecting valuable biological samples.
High-Density Sample Storage

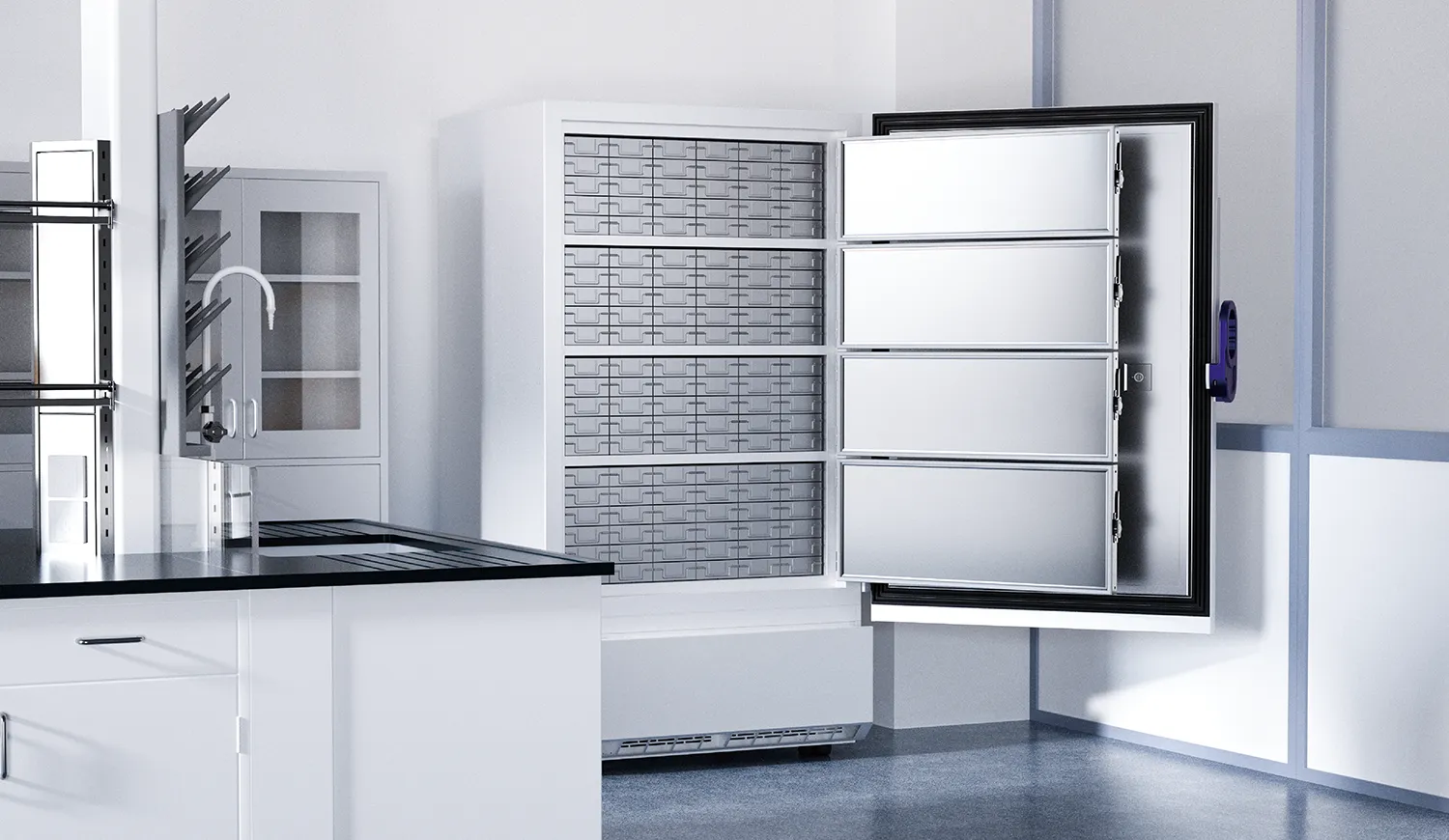

An optimized cabinet structure maximizes internal space utilization, increasing capacity by at least 5% within the same footprint. The largest model stores up to 73,500 2 mL vials in a projected area of 1.2 m².
Intelligent Sample Navigation
Navigator Mode organizes storage positions through a clear hierarchy of layers, racks, drawers, boxes, and tubes. Users can move from an inventory overview to individual sample details for clear, structured navigation.
Fast Sample Location
Navigator Mode guides users directly to the position of a target tube, while List Mode supports code-based order confirmation. Together, they shorten search time and reduce unnecessary sample exposure to room temperature.
Digital Sample Management
The 15.6-inch touchscreen brings storage structures, sample positions, and inventory information into a unified digital interface. Hierarchical views link layers, racks, drawers, boxes, and tubes for efficient inventory management
Electronic Lab Notes
Electronic notes replace paper-based recording by allowing sample information to be entered directly at the box and tube levels. Notes can be imported or exported via USB for convenient transfer between storage devices.
Real-Time Status Display
SmartHalo displays the freezer's current temperature and operating status in real time. During a power outage, the temperature display remains active for at least 36 hours, maintaining visibility of storage conditions.
LED Workflow Guidance

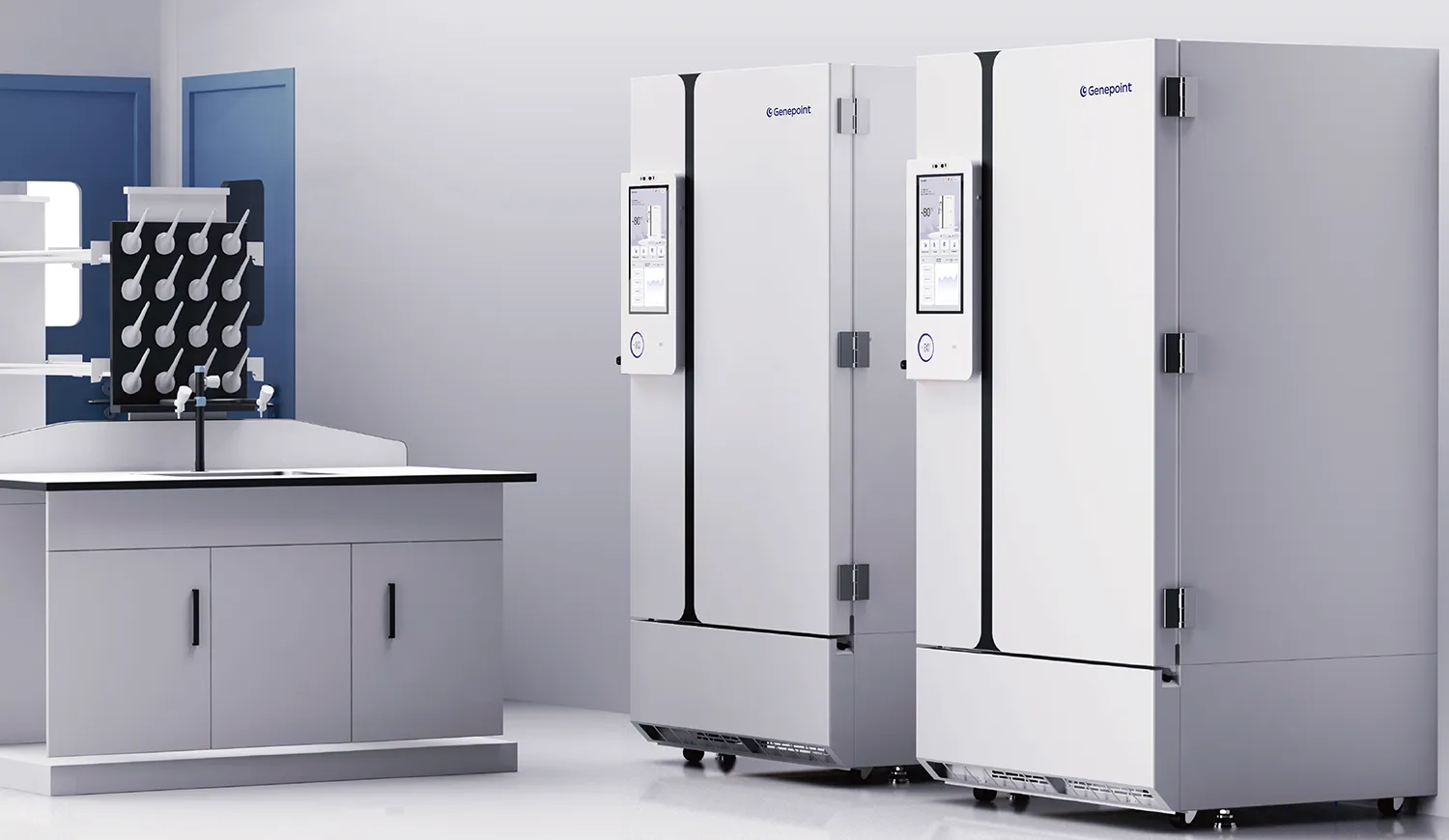

The ring-shaped breathing light indicates order status and guides operators to the correct freezer. When multiple units are managed together, the visual signal makes target equipment easier to identify and supports a smoother retrieval workflow.
 Technical Specifications | |||
| Samplock 600 | Samplock 855 | Samplock 993 | |
| Model | GUF-86U420S | GUF-86U630S | GUF-86U735S |
| Net Internal Volume | 600 L | 855 L | 993 L |
| Temperature Range | -40℃ to -80℃ | ||
| User Interface | 15.6" Capacitive Touchscreen | ||
| Electric | 220 V, 50 Hz * Products are configured to match the local voltage and frequency requirements of each market. | ||
| Width | 885 mm (2 ft, 11 in) | 1,145 mm (3 ft, 9 in) | 1,285 mm (4 ft, 3 in) |
| Depth | 990 mm (3 ft, 3 in) | 990 mm (3 ft, 3 in) | 990 mm (3 ft, 3in) |
| Height | 1,993 mm (6 ft, 6 in) | 1,993 mm (6 ft, 6 in) | 1,993 mm (6 ft, 6 in) |
| 2mL Tube Capacity * | 42,000 | 63,000 | 73,500 |
* Actual capacity may vary depending on the consumables used. Contact your local representative for detailed specifications.
| Accessories | |||
| NFC Module | Control and account login through NFC card swiping, which comes with 5 cards as standard | ||
| Facial Recognition Module | Control and account login through face recognition | ||
| Fingerprint Recognition Module | Control and account login through fingerprint recognition | ||
| Dense Storage Shelves | Stainless steel; Support for SBS racks or cryo boxes | ||
| Single Tube Reader | Recognize individual 1D or 2D codes with a USB connection | ||
